Mechanical Lightning Event Counter LEC-MC
- Prosurge
- China
- 4-5 weeks
- 30kpcs/month
LEC-MC is a compact Mechanical lightning & surge event counter for lightning protection systems. It automatically detects and counts the lightning strikes received by the lightning protection system. The counter is mounted directly onto the lightning down conductor (cable, rod or plate) or the PE line of the surge protection device, no modifications to existing wiring are required.
LEC-MC is an all-in-one counter with no separate additional detection current sensor , and constructed with IP67 enclosures to ensure that dirt, dust and water are resisted for either indoor or outdoor usage. It does not require external power or batteries for operation,maintenance free operation,and is suitable for outdoor installation.
Technical Feature
Needs no maintenance and long service life
High sensitive response with trigger current 1.5kA
Can register very high lightning strike up to 100kA (10/350μs, 8/20μs)
Mechanical strike counter with 6 digit display
Easy to install and use, Fast installation directly on the round wire or flat strip of an existing down conductor, no need to remove the enclosure
Does not require external power or batteries for operation, maintenance free operation
Can not be manual reset to ensures accurate continued recording of lightning strokes
IP67 enclosure with UV resistant & anti-aging plastic,water-proof, dust-proof, anti-sunburn,suitable for outdoor installation
According to standards IEC/EN 62561-6 and EN 50164-6

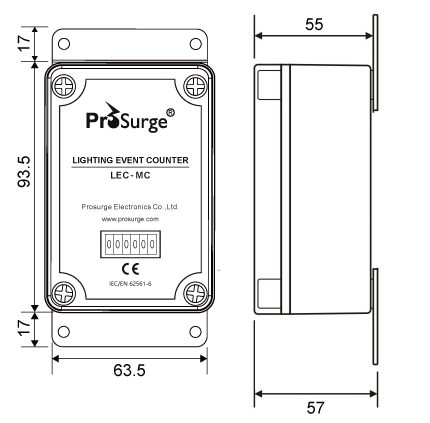

Dimension
(mm)
Technical Data
Part No. | LEC-MC |
Counting Current (rise time ≥8μs) | 1.5kA |
Sequence of impulse | > 1s |
Display Model | Electromechanical digital display |
Counter range | 0~999999 |
Current Sample Mode | Inductive Probe (Built-in) |
Power supply | No battery & power supply need |
Operation temperature | -20~+70℃ |
Mounting | Directly mounting |
Dimension of counter | 93.5x63.5x55mm |
Enclosure material | UV resistant & Anti-aging plastic, UL94-V0 |
Degree of protection | IP67 |
In accordance with | IEC/EN 62561-6 ;EN 50164-6 |

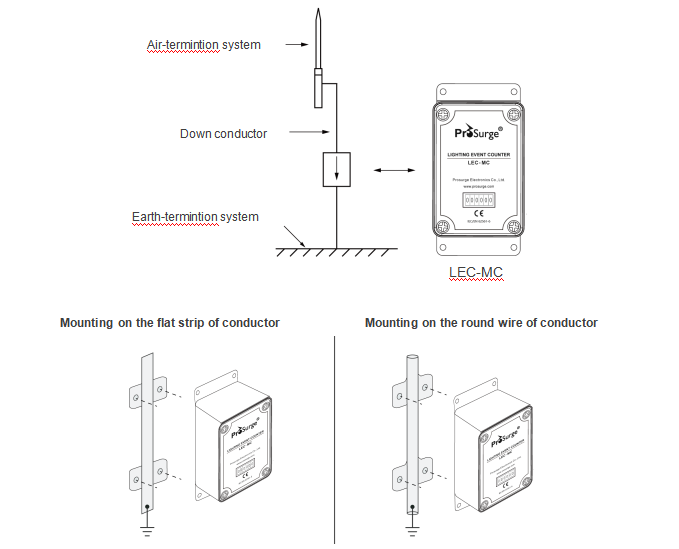

Installation
The lightning event counter LEC-MC is suited for new and existing installations. It is directly mounted on the round wire or flat strip of the down conductor, two mounting accessories are available
