Digital Lightning Event Counter LEC-ME
- Prosurge
- China
- 4-5 weeks
- 30kpcs/month

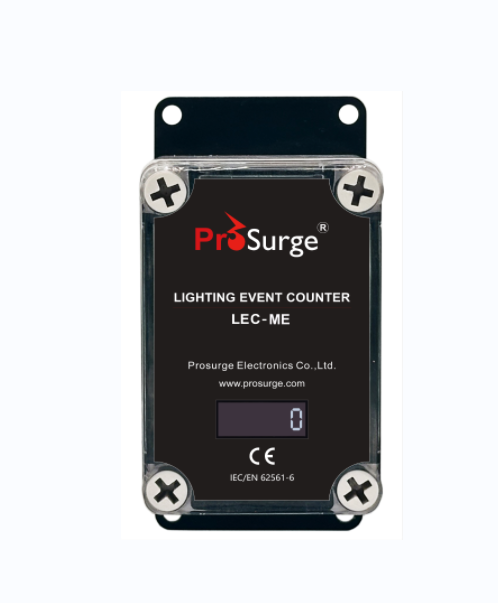

LEC-ME is a compact digital lightning & surge event counter for lightning protection systems. It automatically detects and counts the lightning strikes received by the lightning protection system. The counter is mounted directly onto the lightning down conductor (cable, rod or plate) or the PE line of the surge protection device, no modifications to existing wiring are required.
LEC-ME is an all-in-one counter with no separate additional detection current sensor , and constructed with IP67 enclosures to ensure that dirt, dust and water are resisted for either indoor or outdoor usage. It’s powered by an CR2450 lithium coin battery for easy installation and replacement.
Technical Feature
Low maintenance and long service life
High sensitive response with trigger current 150A
Can register very high lightning strike up to 100kA (10/350μs, 8/20μs)
Easy viewable LCD display
Easy to install and use, fast installation directly on the round wire or flat strip of an existing down conductor, no need to remove the enclosure
CR2450 lithium coin battery for easy installation and replacement,the average battery lifetime is 5 years
Can be reset through the internal reset button
IP67 enclosure with UV resistant & anti-aging plastic,water-proof, dust-proof, anti-sunburn,suitable for outdoor installation
According to standards IEC/EN 62561-6 and EN 50164-6

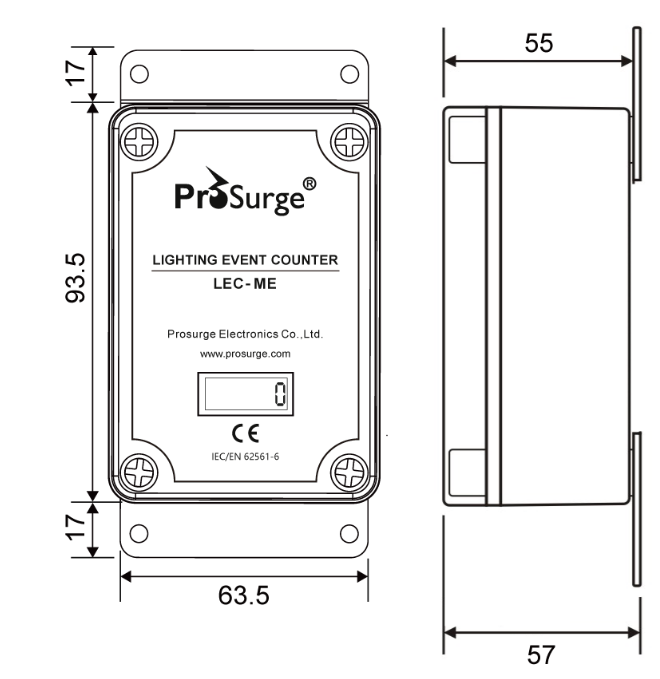

Dimension
(mm)
Technical data
Part No. | LEC-ME |
Counting Current (rise time ≥8μs) | 150A |
Sequence of impulse | > 1s |
Display Model | LCD Display |
Counter range | 0~999999 |
Current Sample Mode | Inductive Probe (Built-in) |
Power supply | Powered by lithium 3V battery CR2450 |
Average battery lifetime | 5 years |
Operation temperature | -20~+70℃ |
Mounting | Directly mounting |
Dimension of counter | 93.5x63.5x55mm |
Enclosure material | UV resistant & Anti-aging plastic, UL94-V0 |
Degree of protection | IP67 |
In accordance with | IEC/EN 62561-6 ;EN 50164-6 |

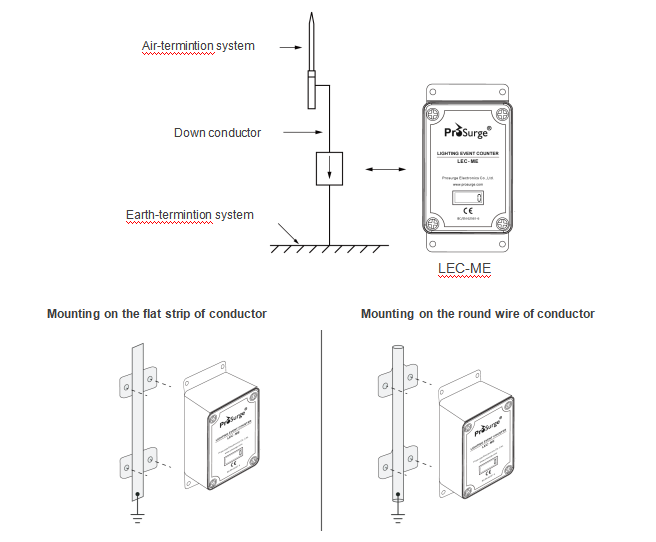

Installation
The lightning event counter LEC-ME is suited for new and existing installations. It is directly mounted on the round wire or flat strip of the down conductor, two mounting accessories are available.
